Y Strainer

Y Strainer

Y-Strainers are used in straining debris from pipelines. They are fitted in the field with nipples and drain valves to permit the strainer screen to be cleaned while the system is still in process. BRISTOL Y-Strainers are compact and economical while also adhere to international and local standards.

Specifications

• Design Standard: UL Subject 321
• Working Pressure: 300psi
• Type: Basket Type ―Y‖ Strainer
• Connection Type:        Flange EN 1092 PN16 / ANSI B16.1 Class 125 / ANSI (Flanged Type) B16.5 Class 150
• (Flanged x Grooved Type) Inlet Coupling —-> Flange ANSI 125
• Outlet Coupling —> Groove

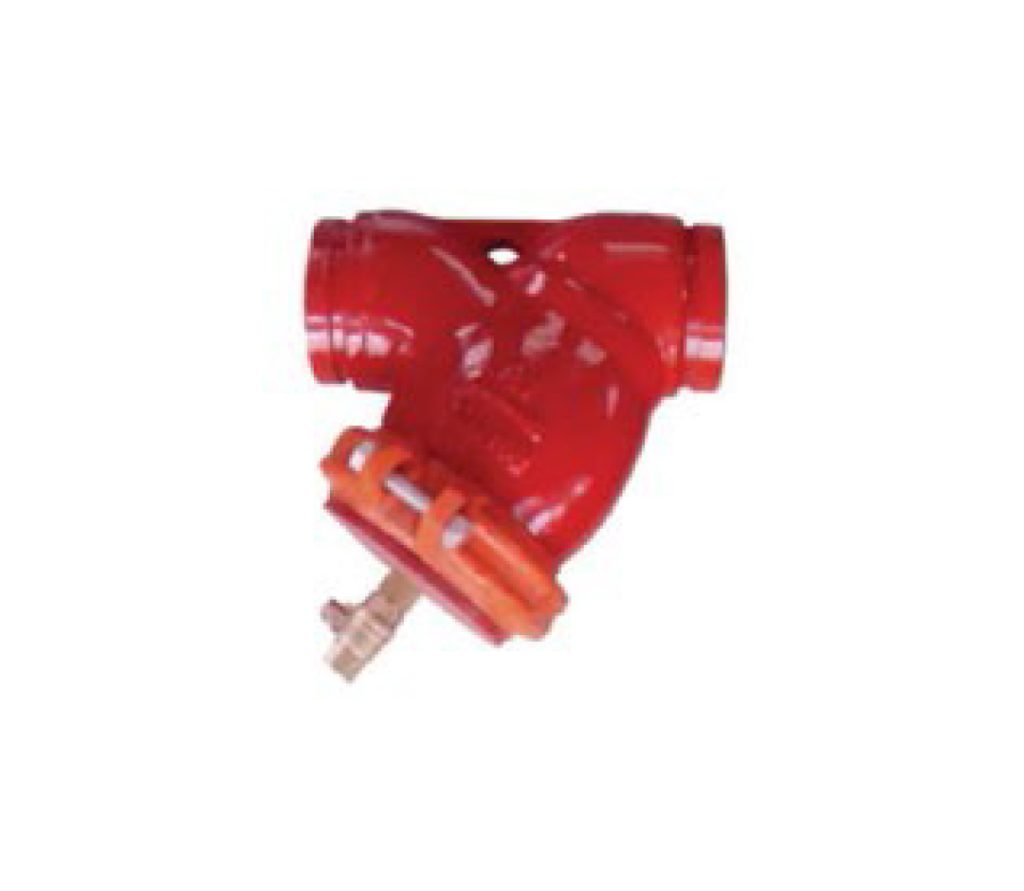

• (Grooved Type)           Groove AWWA C606 (Inlet & Outlet)

Materials

• Body: Ductile Iron ASTM A-536 Grade 65-45-12
• Cover: Ductile Iron ASTM A-536 Grade 65-45-12
• Screen: Stainless Steel AISI 304
• Gasket: EPDM
• Plug: Carbon Steel
